BOUNDARY SCAN

BOUNDARY SCAN

Boundary Scan

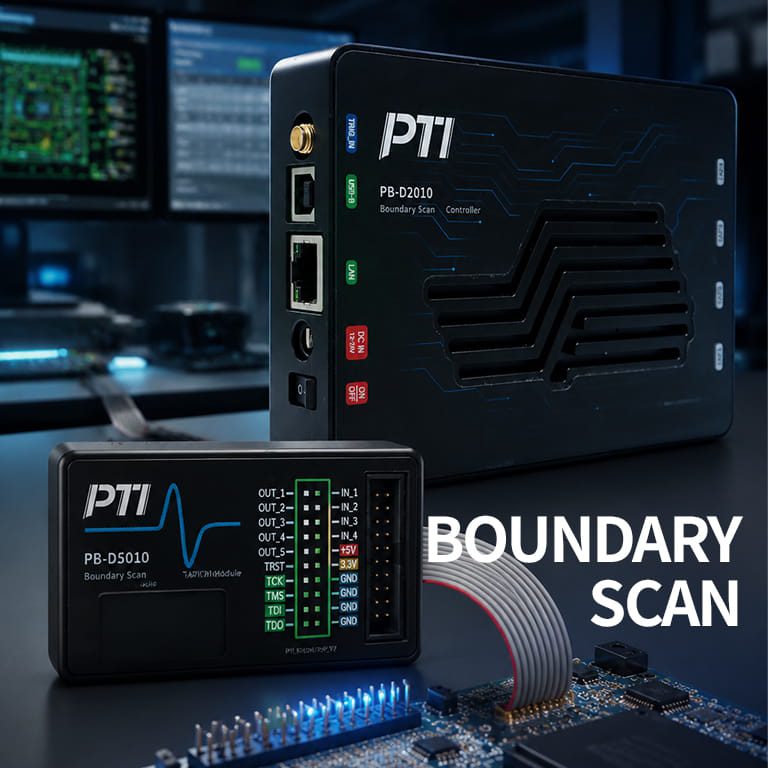

The PTI Boundary Scan Series includes two models—PTI-Boundary Scan and PTI-Boundary Scan Pro—designed to meet different boundary scan testing needs. Featuring TCK frequencies from 2 MHz to 50 MHz, 2–4 TAP channels, and USB 2.0/3.0 or LAN interfaces, the series supports a DC 0–5 V voltage range with high resolution and flexible GPIO options. Compatible with LabVIEW, C#, and VB, PTIs boundary scan solutions provide reliable, efficient, and scalable testing performance for diverse electronic manufacturing applications.

Features

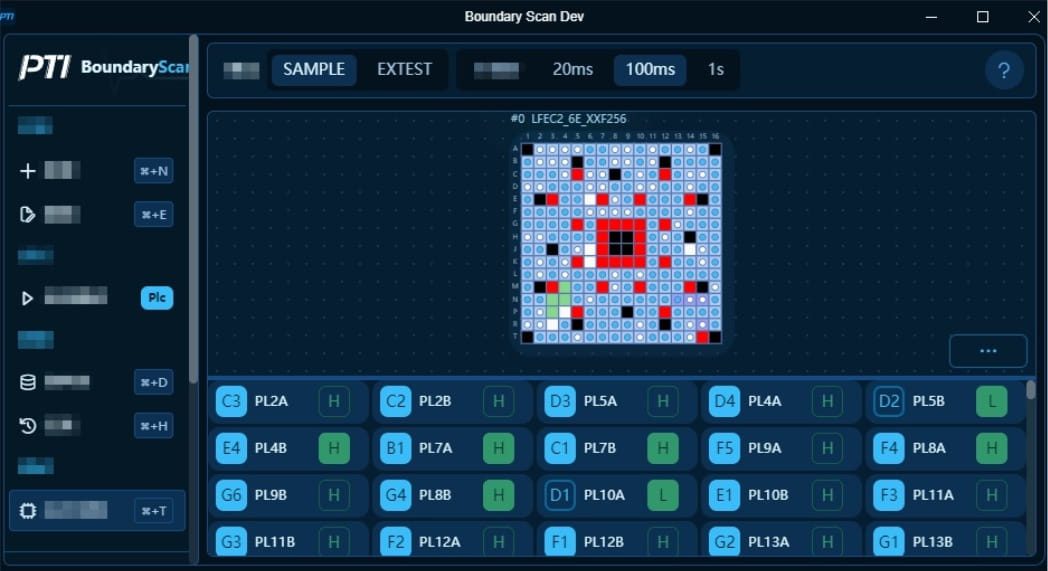

Boundary Scan（images 1）

SOFTWARE

■ Visual Pin Status Display

■ Multi-Mode Test Control

■ Multi-Device and Probe Compatibility

■ Real-Time Pin Monitoring and Interactive Control

■ Integrated Functional Navigation

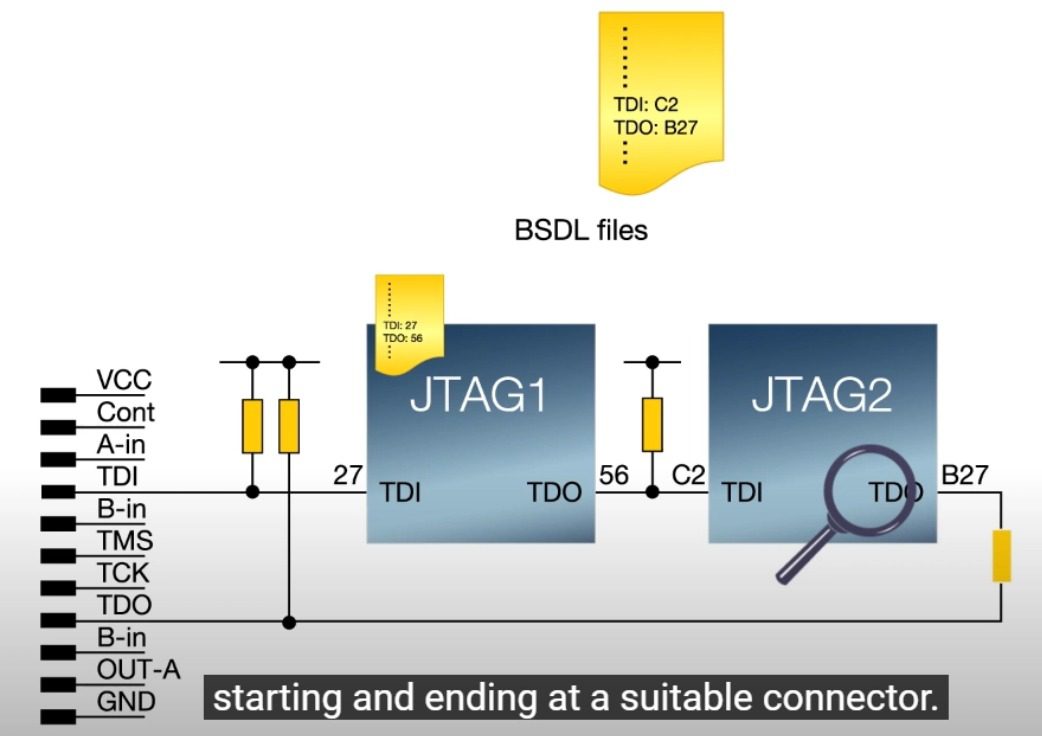

Boundary Scan（images 2）

■ Wide voltage and frequency range (DC 12–24V, 5–50 MHz)

■ USB-B and RJ45 interfaces for flexible connectivity

■ Integrated OLED status display

■ Real-time boundary scan visualization software

■ Support for IEEE 1149.1 / 1149.6 standards

■ Compact, cost-effective design

Test Items

Integrity
ID Code
User Code
BR Length
Interconnect
Bus Wire
Shorted Cap
Resistor Pull
Silicon Nail
Programming
IEEE 1687
Comm Simulation

Technical Parameters

PTI-Boundary Scan
  • 20MHz
  • 5V/500mA
  • USB2.0
  • 2 Channels
  • DC0-5V/resolution of 200 mV
  • DC0-5V
  • /
  • LabVIEW/C#/VB
PTI-Boundary Scan Pro
  • 100MHz
  • DC12-24V/2A
  • USB2.0/LAN
  • 4 Channels
  • DC0-5V/resolution of 100 mV
  • DC0-3.3V
  • output:5CH/input:4CH
  • LabVIEW/C#/VB

Application

Computational and server board test
Automotive electronics test
Medical device test
Network communication board test
Smartphones
Industrial electronics test
