LED TEST MODULE

LED TEST MODULE

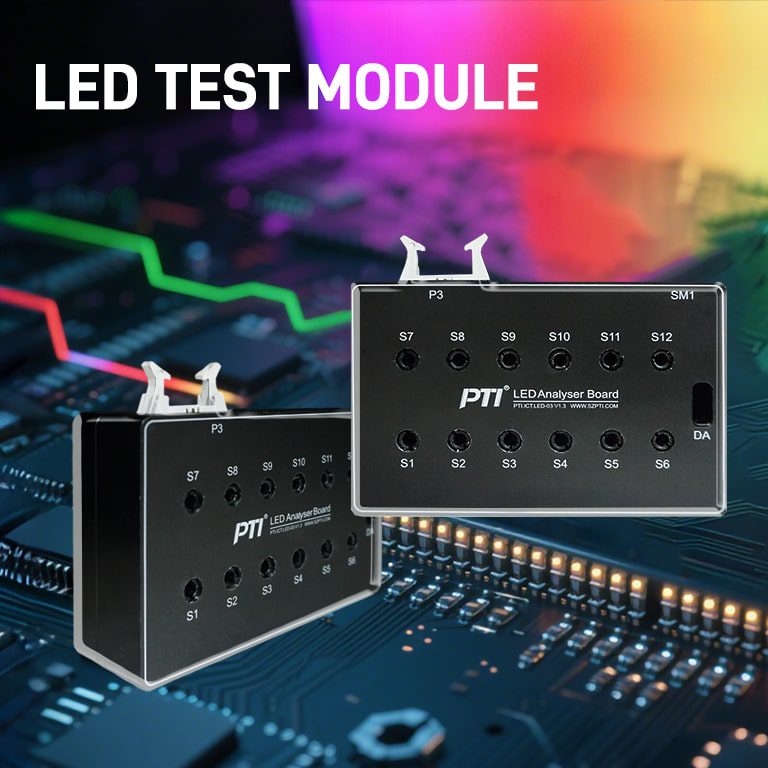

LED TEST Module

The PTI-LED test module mainly detects the brightness, color (red, green and blue) , LED flashing frequency, and can also conduct multi-channel color and brightness uniformity test. Its principle is  transmit the DUT  to the sensor of the LED test module through optical fiber,  and then collect it to the test equipment through communication to realize automatic test.

Features

Test Data(RGB,HSV,XY,XYZ,etc)
Capture  LED fashing frequency multi-channel automatically.
Software ID can be obtained and check the channel automatically.
64x gain adjustment, suitable for all kinds of weak scenes.
Compatible with 1/1.3/2.2mm quick plug optical fiber.
Industrial design, high stability.

Module Interface

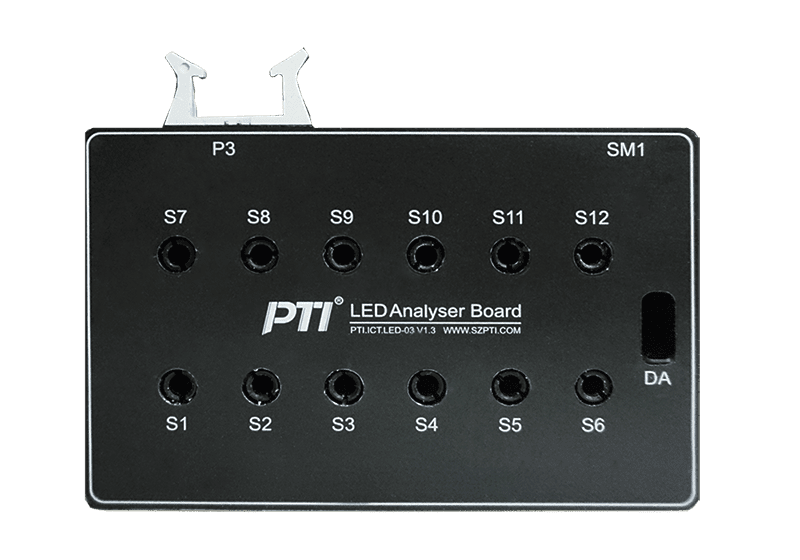

LED Test Module（images 1）

SM1: Module address selector switch
P3: LINK communication control interface
S1-S12: 12 measuring channels
DA:  Module address indicator light

Technical Parameters

Electrical Specification
  • Operating Voltage: 6V
  • Operating Current: 200mA
  • Data Format: RGB, HSV, XY, XYZ … …
  • Module Numbers（Max）: 16
  • Channel Numbers（Max）: 192
Software Programming
  • Language: Chinese, English, Japanese, France, Spanish
  • System: WIN7, WIN8, WIN10, WIN11
  • Debugging Software: Interface Visualization Table Operation
  • Special Function: Read LED Flashing Frequency
Structure Parameters
  • Appearance Size: 132 × 84 × 26 mm
  • Optical Fiber Fixation: Plug-in Type Optical Fiber Interface
  • Optical Fiber Material: Compatible with 2.2 mm/1.3 mm/1.0mm Optical Fiber
  • Material: Black Plastic-Steel
Measuring Parameters
  • RGB: ＜ 3%
  • HSV: ＜ 3%
  • XY: ＜ 3%
  • XYZ: ＜ 3%

Application

LED Test Module（images 2）
Automotive electronics: Dashboard, Car lights, Button background lights, etc.
LED Test Module（images 3）
Communication electronics: Server, Router switches, etc.
LED Test Module（images 4）
Household appliances: LED lighting, TV sets, Laptop, Smart phones, etc.
LED Test Module（images 5）
Industrial electronics: Light sources, Traffic lights, Stage lights, etc.
